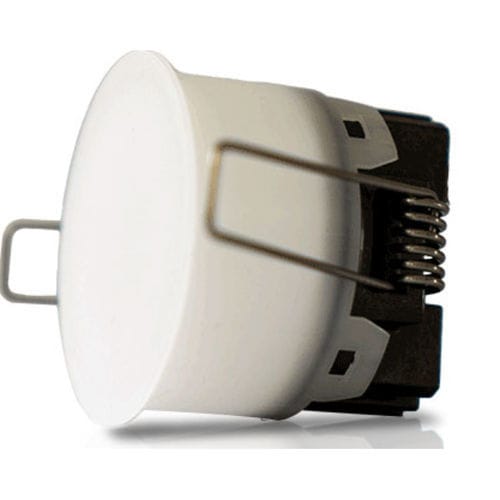

Foco para iluminación exterior SMARTSPOT 50 ON-OFF

para iluminación interiorpara barcode luces

Overview
The ultimate recessed downlight generation. Embedded electronics, latest generation LED, smart.

Design — Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame can be customizable and has to be ordered separately if required.

Light quality
The use of a technological material for the lens delivers an incredibly homogeneous enlightened surface; when the downlights are turned off the internal components are completely hidden for an elegant appearance.

Optics and LEDs
The light is emitted by 8 OSRAM LEDs arranged according to a luminous flux study to obtain the best result. The standard white temperature is 3.000K; other white temperatures available on request.

Materials & corrosion resistance
The total plastic body eliminates the risk of galvanic currents and potential corrosion, making the downlight safe for marine use and keeping its appearance over time.

Electronics & protections
The product uses automotive-certified components to resist battery voltage peaks and includes an automatic shut-off system to prevent damage from overvoltages. Electronics are resistant up to 60Vdc; from 32Vdc up to 60Vdc the device automatically shuts down to prevent damages. Protections include polarity reverse, overheating protection, short-circuit protection and protection against electrostatic charges and voltage peaks.

Behaviour & dimming
Both the turning ON and the turning OFF phases occur with a smooth fade in / fade out effect to soften light changes. SMARTSPOT light can be dimmed from 100% down to 0% with a true deep dimming mode (not a simple PWM effect), offering a very soft intensity change and a relaxing ambient light.

Installation & mechanical
Reduced encumbrance: total height just 44.4 mm, allowing installation where spaces are limited. Projector dimensions: Diameter 50 mm x thickness 44,4 mm. Super light weight due to the use of plastic in screen and heatsink, contributing to overall weight reduction.

Environmental & ingress
Degree of protection IP68: suitable for internal rooms and external corridors; waterproof.

Additional features

• No galvanic currents or corrosion risk due to plastic body
• Fade in / fade out effect
• 60Vdc resistant electronics with automatic shut-off
• EMC compliant with 2014/30/EU

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Denomination commerciale: SMARTSPOT 50 ON-OFF
• Luminous intensity: 400 lm (WHITE)
• LEDs: 8 OSRAM LEDs
• Standard light temperature: White 3.000K (other whites available on request)
• Power supply: 24Vdc (suitable for 24Vdc systems; compatible with 230Vac using an additional power supply unit)
• Output power: 4,8W
• Absorption: Max 0,20A @ 24Vdc
• Driver type: internal (embedded electronics)
• Dimmable: Yes — true deep dimming mode (100% → 0%)
• Fade in / Fade out effect: Yes (smooth)
• Protections: polarity reverse, overheating protection, short circuits, electrostatic charges, voltage peaks; contains automotive qualified electronic components
• Resistance to voltage peaks: 60 Vdc (device automatically shuts down from 32Vdc up to 60Vdc to prevent damage)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Body material: total plastic (eliminates galvanic currents)
• Waterproof: IP68
• Projector dimensions: Diameter 50 mm x thickness 44,4 mm
• System typology: Standard
• Operating modes: ON/OFF and dimming
• Compliances: RoHS 2011/65/EU; Electromagnetic compatibility 2014/30/EU
